Hitachi EX220 Hino Governor parts page

Hitachi EX220 Hino Governor parts page

Hitachi EX220 Hino Governor parts page

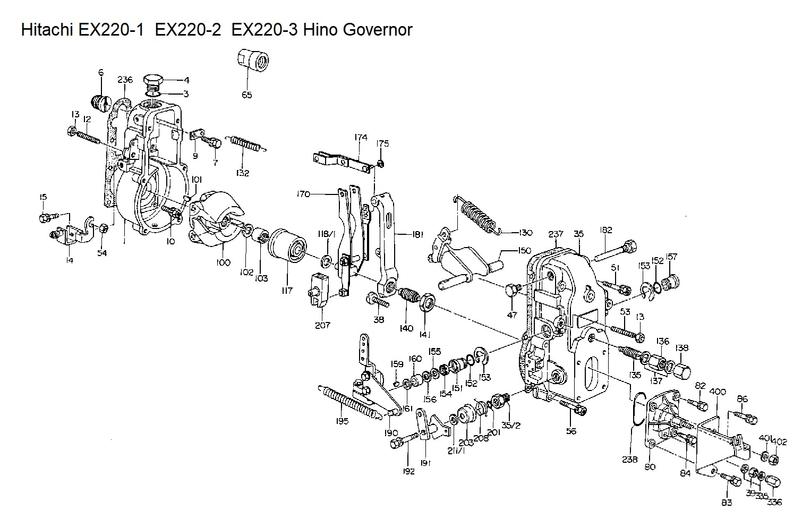

Hitachi EX220-1 4251292 Governor
Hitachi EX220-2 4251829 Governor
Hitachi EX220-3 4364821 Governor
1. 4250089 GOVERNOR HOUSING (1) EX220-1
1. 4251661 GOVERNOR HOUSING (1) EX220-2
1. 4370004 GOVERNOR HOUSING (1) EX220-3
3. 4250090 O-RING (1)
4. 4250092 CAPSULE (1)
6. 4250093 ADAPTOR (1)
7. 4250094 BLEEDER SCREW (1)
9. 4250095 PLATE (1)
10. 4250098 BLEEDER SCREW (6)
12. 4250099 FLAT-HEAD SCREW (1)
13. 4250150 HEXAGON NUT (2)
13. 4250151 HEXAGON NUT (2)
14. 4250152 BRACKET (1)
15. 4250153 BLEEDER SCREW (1)
35. 4250154 GOVERNOR COVER (1)
35/2. 4250155 BUSHING (1)
38. 4250156 FLAT-HEAD SCREW (1)
39. 4250157 UNION NUT (1)
47. 4250158 CAPSULE (1)
51. 4250159 BLEEDER SCREW (2)
53. 4250181 FLAT-HEAD SCREW (1)
54. 4250182 UNION NUT (1)
56. 4250183 BLEEDER SCREW (4)
65. 4250160 STOPPING DEVICE (1)
80. 4250161 COVER (1)
82. 4250162 BLEEDER SCREW (1)
83. 4250184 BLEEDER SCREW (1)
84. 4250185 BLEEDER SCREW (6)
86. 4250186 BLEEDER SCREW (1)
100. 4250163 FLYWEIGHT ASSEMBLY (1)
101. 4250164 WOODRUFF KEY (1)
102. 4250187 LOCKING WASHER (1)
103. 4250188 UNION NUT (1)
117. 4250165 SLIDING PIECE (1)
118/1. 4250189 SHIM 0.20
118/1. 4250190 SHIM 0.30
118/1. 4250191 SHIM 0.40
118/1. 4250192 SHIM 1.00
118/1. 4250194 SHIM 0.50
118/1. 4250195 SHIM 1.50
118/1. 4250196 SHIM 2.00
118/1. 4250197 SHIM 3.00
118/1. 4250198 SHIM 4.0
130. 4250166 GOVERNOR SPRING (1)
132. 4250167 COILED SPRING (1)
135. 4250168 HEADLESS SCREW (1)
136. 4250169 UNION NUT (1)
137. 4250170 GASKET (2)
138. 4250171 CAP NUT (1)
140. 4250172 HEADLESS SCREW (1)
141. 4250173 UNION NUT (1)
150. 4290202 SWIVELLING LEVER (1)
151. 4290203 BUSHING (1)
152. 4290204 O-RING (2)
152. 4290205 O-RING (2)
153. 4250174 LOCKING WASHER (2)
153. 4250176 LOCKING WASHER (2)
154. 4290210 PACKING RING (1)
155. 4290211 SHIM (1)
156. 4290212 SHIM 0.5
157. 4290206 BUSHING (1)
159. 4290209 WOODRUFF KEY (1)
160. 4290208 BUSHING (1)
161. 4290207 PLAIN WASHER
170. 4290225 FORK LEVER (1)
174. 4290213 STRAP (1)
175. 4290214 LOCKING WASHER (1)
181. 4290226 TENSIONING LEVER (1)
182. 4290230 BEARING PIN (1)
190. 4290228 CONTROL LEVER (1)
191. 4290227 CONTROL LEVER (1)
192. 4290224 BLEEDER SCREW (1)
195. 4290223 COILED SPRING (1)
201. 4290220 O-RING (1)
203. 4290222 CAP (1)
207. 4290221 CONTROL LEVER (1)
208. 4290219 COILED SPRING (1)
211/1. 4290240 SHIM 0.20
211/1. 4290241 SHIM 0.25
211/1. 4290242 SHIM 0.30
211/1. 4290243 SHIM 0.35
211/1. 4290244 SHIM 0.40
211/1. 4290245 SHIM 0.50
236. 4290231 GASKET (1)
237. 4290235 GASKET (1)
238. 4290232 O-RING (1)
335. 4290233 GASKET (2)
336. 4290236 CAP NUT (1)
400. 4290234 BRACKET (1)
401. 4290237 LOCKING WASHER (1)
402. 4290246 UNION NUT (1)
